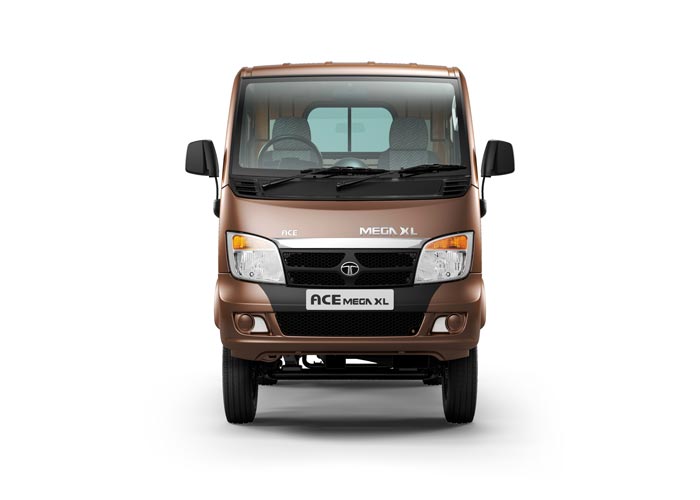

Tata Ace Mega XL SpecificationsThe smart and revolutionary small truck offers cost-effective transportation for small and medium business enterprises. With its robust design and greater load-carrying capacity, the low-on-maintenance Tata Motors’ Ace Mega XL is total value for money.

Select a model
  • Ace Mega XL
Download Specification
SPECIFICATIONS Ace Mega XL
ENGINE
Type TATA 800CC DICOR TCIC ENGINE, BS III
Max power (HP) 40 @ 3750 RPM
Max torque (Nm) 100 @ 1700-2000 RPM
Fuel Tank Capacity(L) 30
TRANSMISSION AND STEERING
Clutch (mm) 190, Single plate dry friction diaphragm type
Gear box GBS 65-5/5.27
First Gear Ratio 5.27
RAR 4.88
SUSPENSION
Type Semi-elliptical leaf spring at front and rear
WHEELS & TYRES
Type 165 R14 LT 8PR
DIMENSIONS
Ground Clearance(mm) 175
Wheel base (mm) 2250
TCD (m) 10.25
Vehicle Overall Length (mm) 4075
Vehicle Overall Width(mm) 1594
Overall Height (Unladen)(mm) 1887
WEIGHTS
GVW (Kg) 2100
Max. FAW (Kg) 985
Max. RAW (Kg) 1115
Kerb Weight (Cabin/Chassis)(Kg) 1100
PERFOMANCE
Max.Gradeability @ 1st Gear 30%
Top Speed(kmph) 80
